- 3,000 kg rated load Handles loads up to 3,000 kg, the maximum payload offered in SIASUN's under-ride lift mobile robot series.
- 120 mm under-ride lifting stroke Drives beneath the load carrier and raises it through a smooth, stable 120 mm lift for reliable heavy-load engagement.
- Flexible SLAM + QR-code navigation Runs on SLAM fused with QR-code guidance or in QR-code-only mode, matching the navigation approach to the facility layout.
- ±10 mm / ±1° positioning accuracy Maintains tight positional repeatability so even three-tonne transfers align consistently at pick-up and drop-off.
- 6–8 hour rated operating time Rated to operate for 6 to 8 hours, supporting sustained heavy-duty transport across production logistics routes.
- Intelligent fleet coordination Connects to dispatch software and intelligent scheduling platforms to automate material transfers with minimal manual intervention.
Description

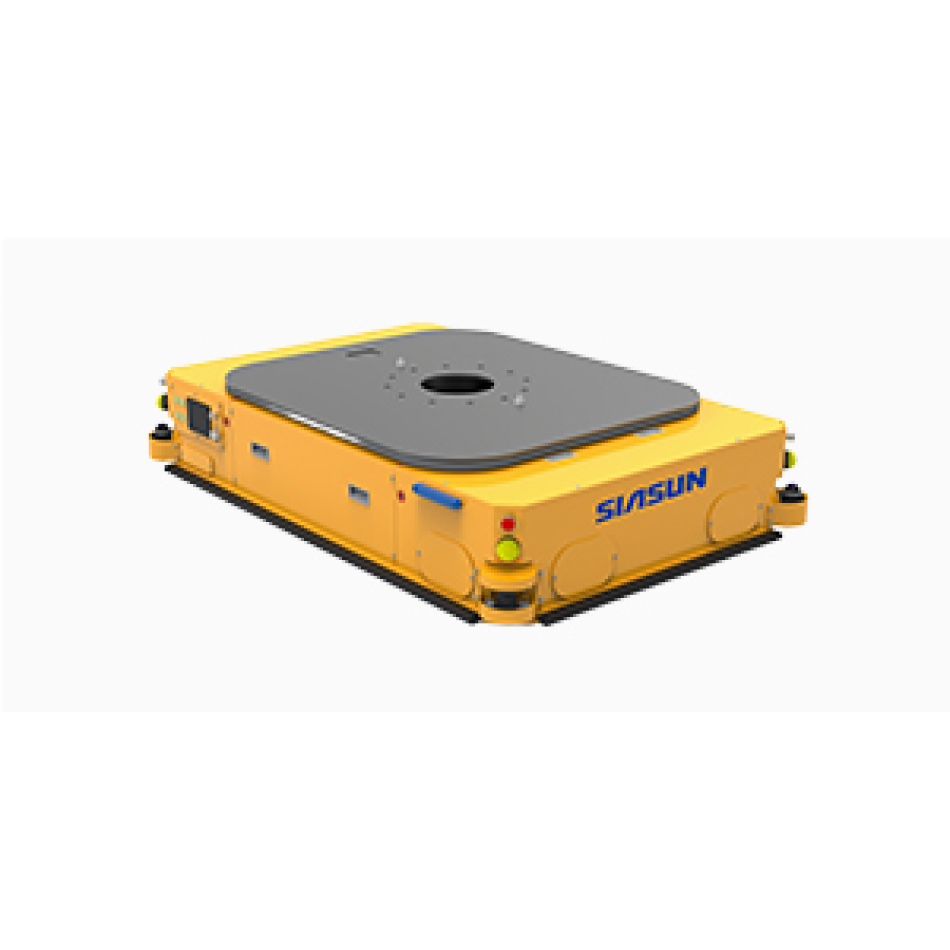

The SIASUN P-T3000D is the heaviest-payload model in SIASUN's under-ride lift mobile robot series, carrying loads up to 3,000 kg at the top of the family's 600 to 3,000 kg range. The robot slides its 1850 x 1250 x 400 mm low-profile chassis beneath the load carrier, engages the pick-up point with precision, and raises the load through a stable 120 mm lifting stroke. It navigates using SLAM combined with QR-code guidance or QR codes alone, holds positioning accuracy of plus or minus 10 mm and 1 degree, and sustains a rated operating time of 6 to 8 hours per duty cycle.
The P-T3000D is aimed at heavy material transfers in industrial production logistics: smart factories, warehouses, and process-driven handling operations where three-tonne loads must move repeatably, accurately, and safely without manual driving. Autonomous navigation, safety sensing, and dispatch software work together, and integration with intelligent scheduling platforms lets the robot slot into coordinated, facility-wide material flow. Typical settings include automotive production, lithium battery manufacturing, 3C electronics, pharmaceuticals, food, and photovoltaic production plants pursuing streamlined, dependable intralogistics.
Features
Specs
| Brand | SIASUN |
|---|---|
| Model | P-T3000D |
| Rated Load | 3000 kg |
| Lifting Height | 120 mm |
| Navigation Method | SLAM + QR Code / QR Code |
| Positioning Accuracy | ±10 mm / ±1° |
| Rated Operating Time | 6–8 hours |
| Overall Dimensions | 1850 / 1250 / 400 mm |
Industries
Frequently Asked Questions
The P-T3000D is an autonomous under-ride lift mobile robot from SIASUN rated for loads up to 3,000 kg. Its low-profile chassis drives beneath a load carrier, lifts it 120 mm, and transports it autonomously using navigation, safety sensing, and dispatch software.
It provides a 3,000 kg rated load, a 120 mm lifting height, SLAM + QR Code or QR-code-only navigation, positioning accuracy of ±10 mm and ±1°, a rated operating time of 6 to 8 hours, and overall dimensions of 1850 x 1250 x 400 mm.
It serves heavy material transfer in industrial production logistics, with typical environments including warehouses, smart factories, automotive production, lithium battery manufacturing, 3C electronics, pharmaceuticals, food, and photovoltaic production.
The under-ride series offers payload options from 600 to 3,000 kg, and the P-T3000D sits at the top of that range with the series' highest 3,000 kg capacity and a 120 mm lift. Lighter models such as the 2,000 kg P-T2000D and 600 kg P-T600D are also available through Robotix Market for less demanding loads.
The P-T3000D is configured for quotation-based purchasing, with availability, final configuration, and integration requirements confirmed before ordering. Request a quote through Robotix Market for pricing and shipping; the robot carries the manufacturer's warranty as provided by SIASUN, and we ship worldwide.
