- 3,500 kg load capacity Carries complete powertrain, axle, and battery assemblies, consolidating heavy final-assembly transport on one platform.
- Four-point scissor-lift structure A 1,050 mm lifting stroke with four-point support enables high-precision positioning and assisted assembly at the station.
- Floating lift platform Platform float of ±125 mm in X, ±50 mm in Y, and ±2° in angle allows fine alignment of components during fitting operations.
- Omnidirectional four-wheel steering drive Moves freely in any direction between stations, adapting to multi-model, multi-station line layouts without fixed conveyance.
- ±10 mm / ±1° navigation accuracy Precise autonomous positioning keeps the platform accurately located throughout assembly sequences.
- Intelligent fleet scheduling Fleet-level dispatch coordinates multiple robots across the final-assembly area for efficient, flexible production flow.
Description

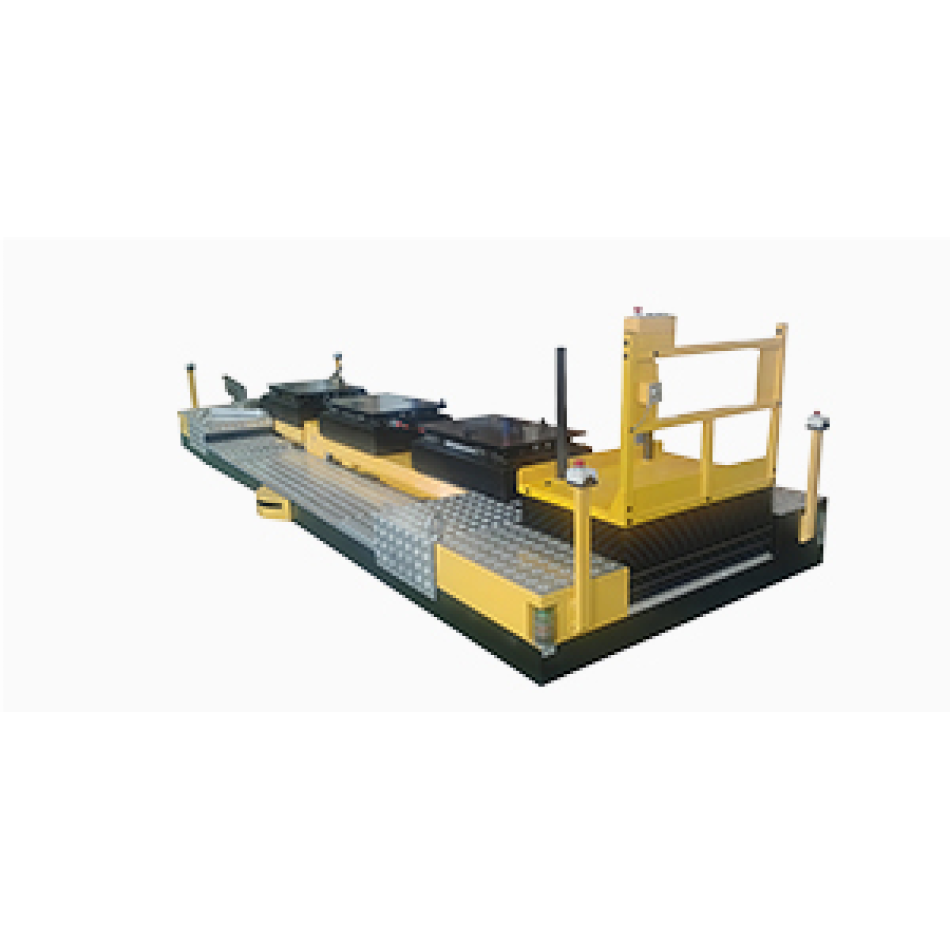

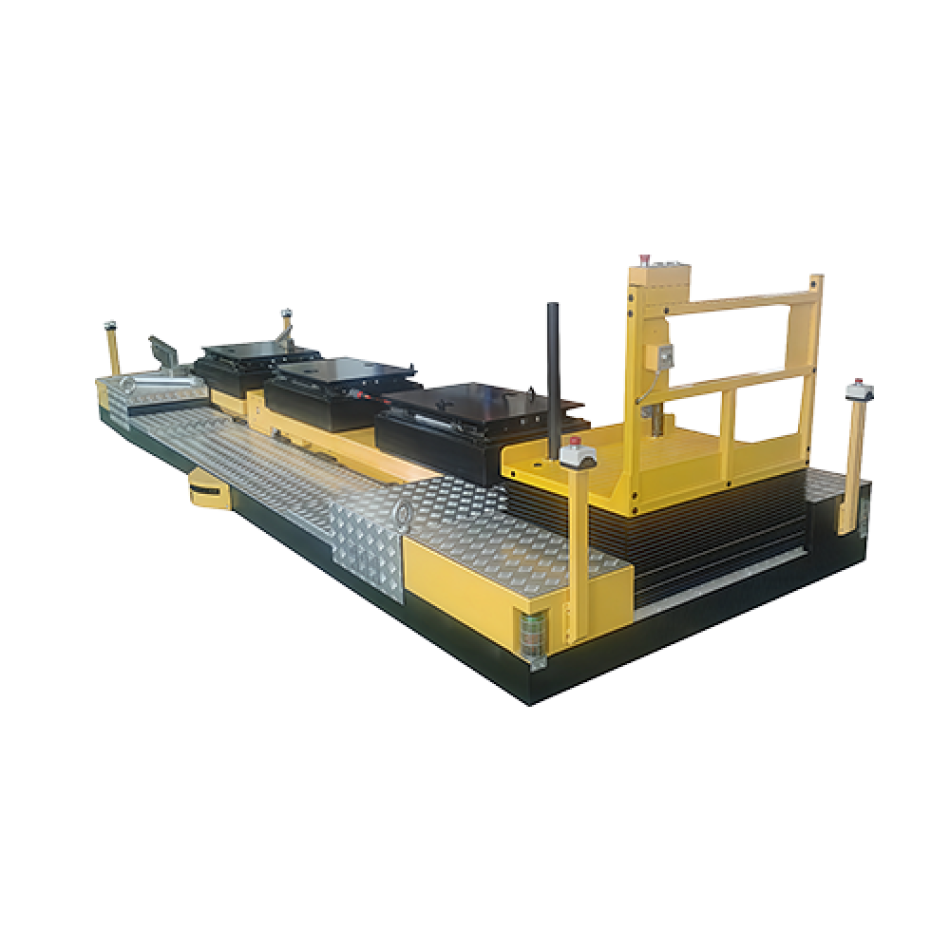

The SIASUN Four-Lift Automotive Assembly Mobile Robot is a heavy-duty mobile platform developed for the most demanding processes in modern vehicle final assembly. It consolidates powertrain, front and rear axle, battery, and manned-operation requirements into a single platform with a 3,500 kg load capacity. A four-point scissor-lift structure with a 1,050 mm lifting stroke provides high-precision positioning and assisted assembly, while the lift platform floats ±125 mm in X, ±50 mm in Y, and ±2° in angle to accommodate fine alignment during assisted-assembly and fitting operations. The spiral lifting mechanism carries a single-point load of 1,000 kg including spring force, and navigation accuracy of ±10 mm / ±1° keeps the platform precisely on station.
Omnidirectional mobility from the four-wheel steering drive lets the robot move freely between stations, and intelligent fleet scheduling coordinates multiple units across multi-model, multi-station production environments. The result is a flexible alternative to fixed conveyance for final-assembly lines, suited to automotive plants pursuing efficient, safe, and reconfigurable assembly automation. The Four-Lift Automotive Assembly Mobile Robot is supplied on a quotation basis, with final configuration and integration requirements confirmed per project.
Features
Specs
| Brand | SIASUN |
|---|---|
| Model | Four-Lift Automotive Assembly Mobile Robot |
| Load Capacity | 3500 kg |
| Lift Structure | Four-point scissor lift |
| Lifting Stroke | 1050 mm |
| Lift Platform Float | X ±125 mm; Y ±50 mm; Angle ±2° |
| Lifting Mechanism | Spiral lift, single-point load 1,000 kg (incl. spring force) |
| Drive System | Four-wheel steering drive |
| Navigation Accuracy | ±10 mm / ±1° |
Industries
Frequently Asked Questions
It is a heavy-duty autonomous mobile platform for vehicle final assembly. With a 3,500 kg load capacity and a four-point scissor-lift structure, it transports and positions powertrain, front and rear axle, and battery assemblies while also supporting manned-operation requirements.
It automates final-assembly processes: carrying heavy assemblies between stations, lifting them with a 1,050 mm stroke, and using platform float of ±125 mm in X, ±50 mm in Y, and ±2° in angle for precise, assisted alignment during fitting. Fleet scheduling coordinates multiple units across multi-model, multi-station lines.
The SIASUN V-Series Industrial Robot is an industrial robot for production-line automation tasks, whereas the Four-Lift Automotive Assembly Mobile Robot is an omnidirectional mobile lift platform that moves and positions complete vehicle assemblies. They address different roles within an automated plant.
The robot is covered by the manufacturer's warranty as provided by SIASUN. Robotix Market ships worldwide, and warranty terms are confirmed with your quotation.
The Four-Lift Automotive Assembly Mobile Robot is supplied on a quotation basis. Contact Robotix Market through the website's quote or inquiry form, and our team will confirm pricing, availability, final configuration, and integration requirements for your project.
