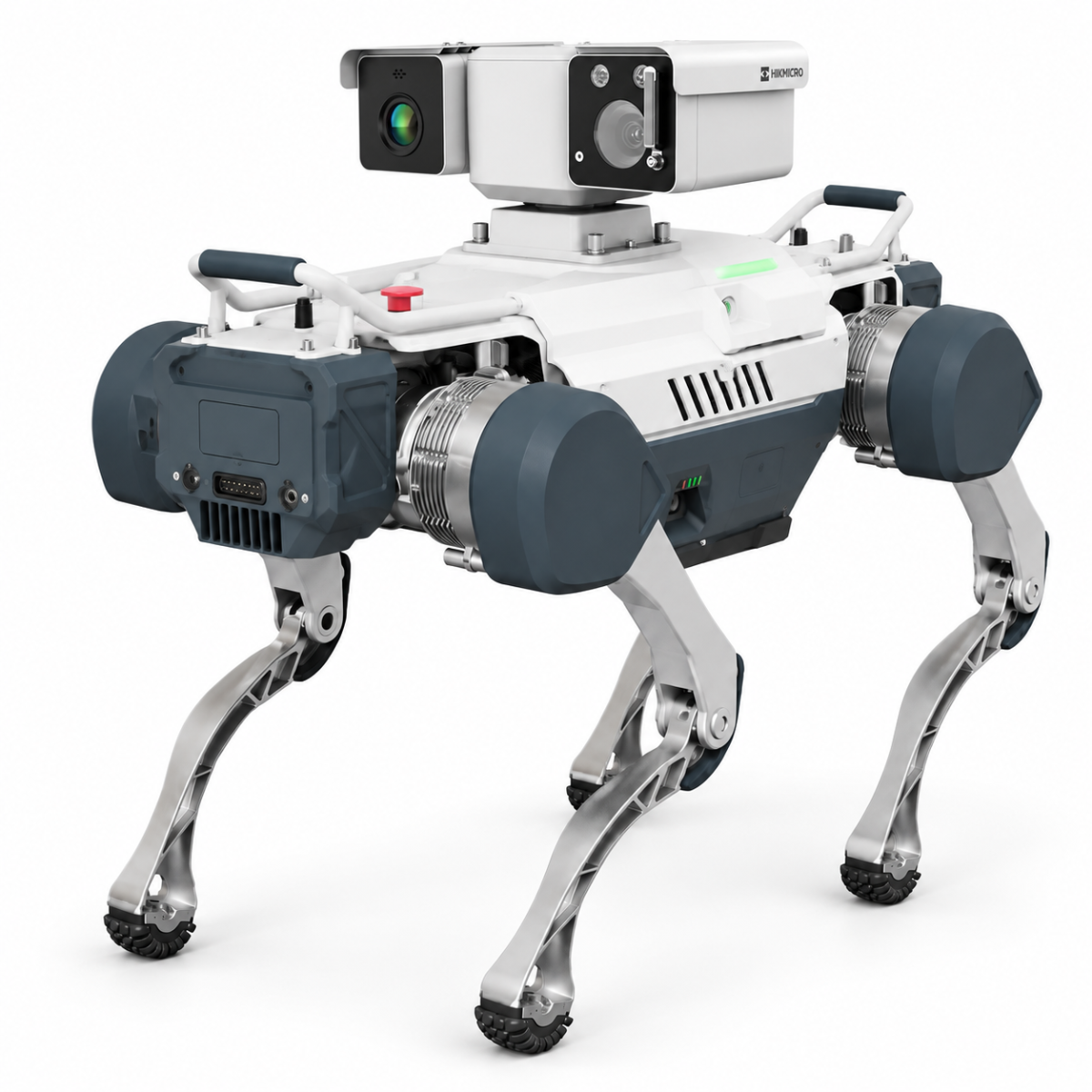

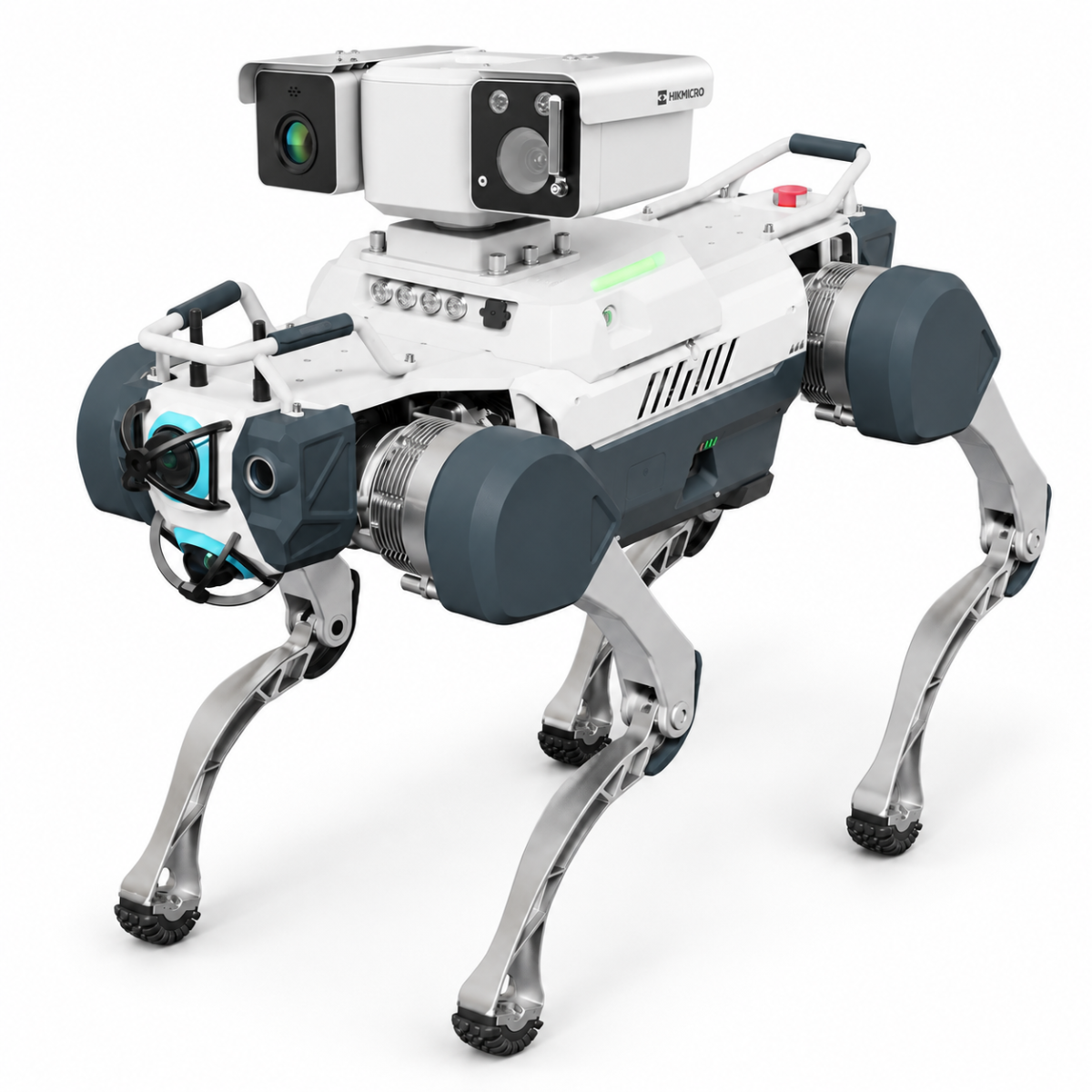

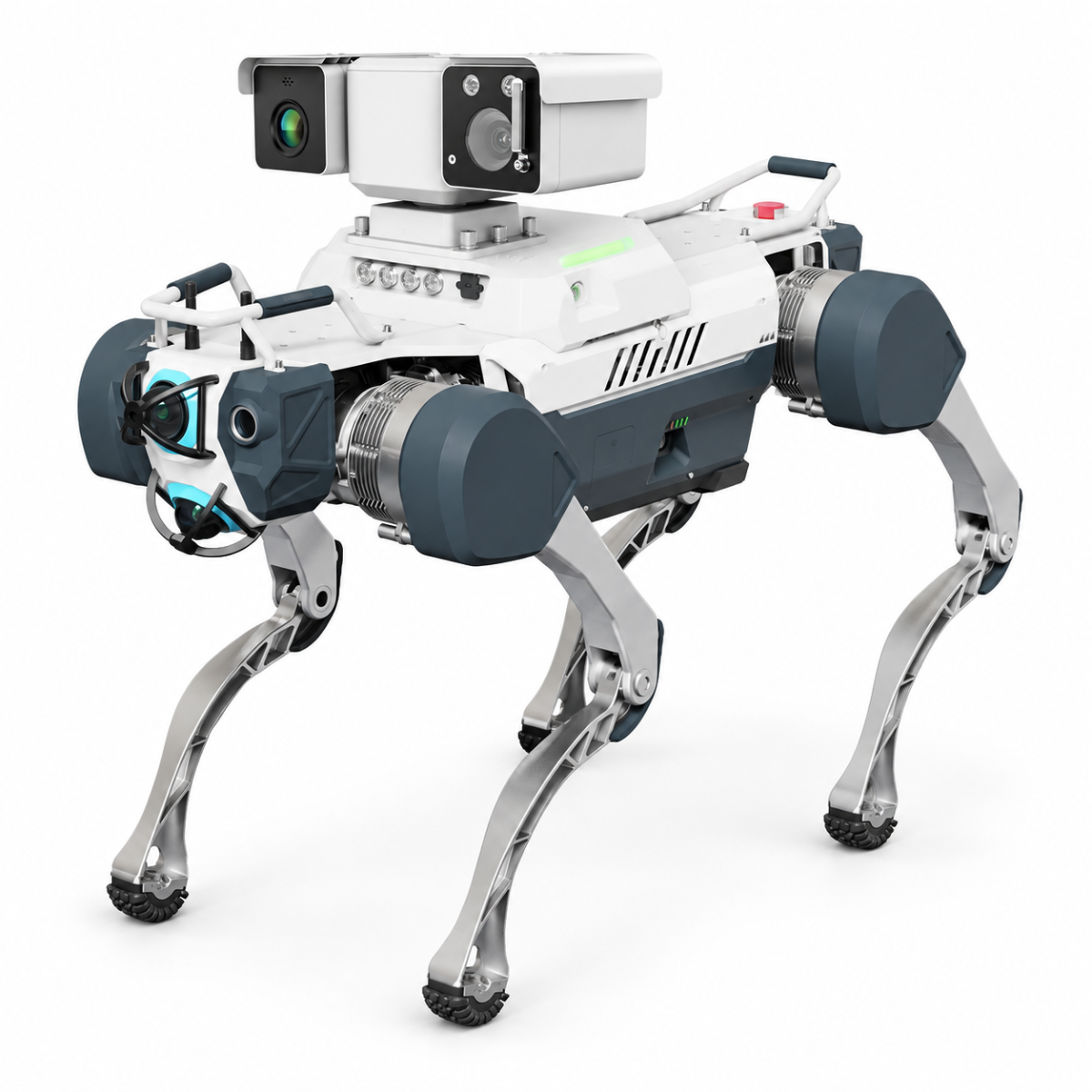

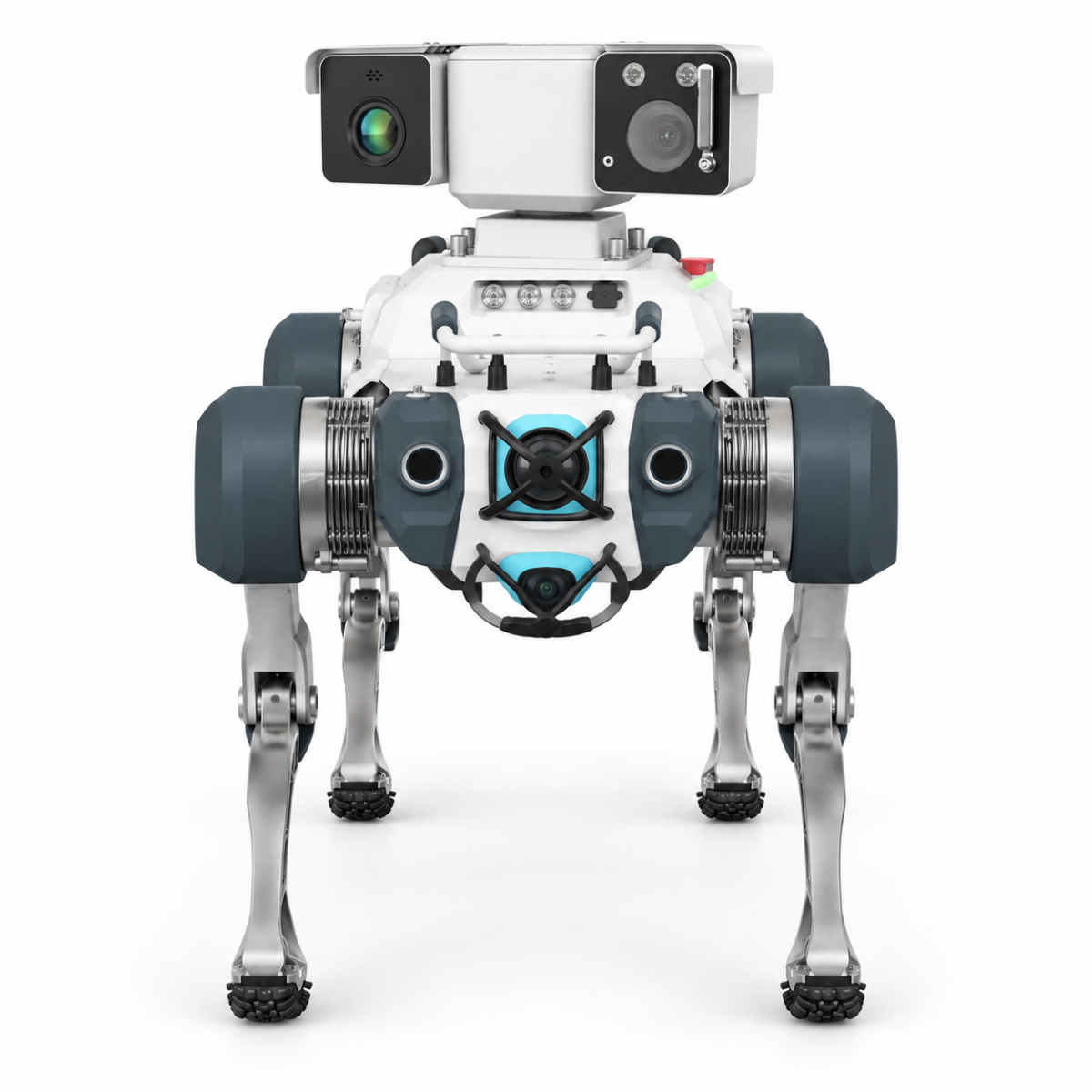

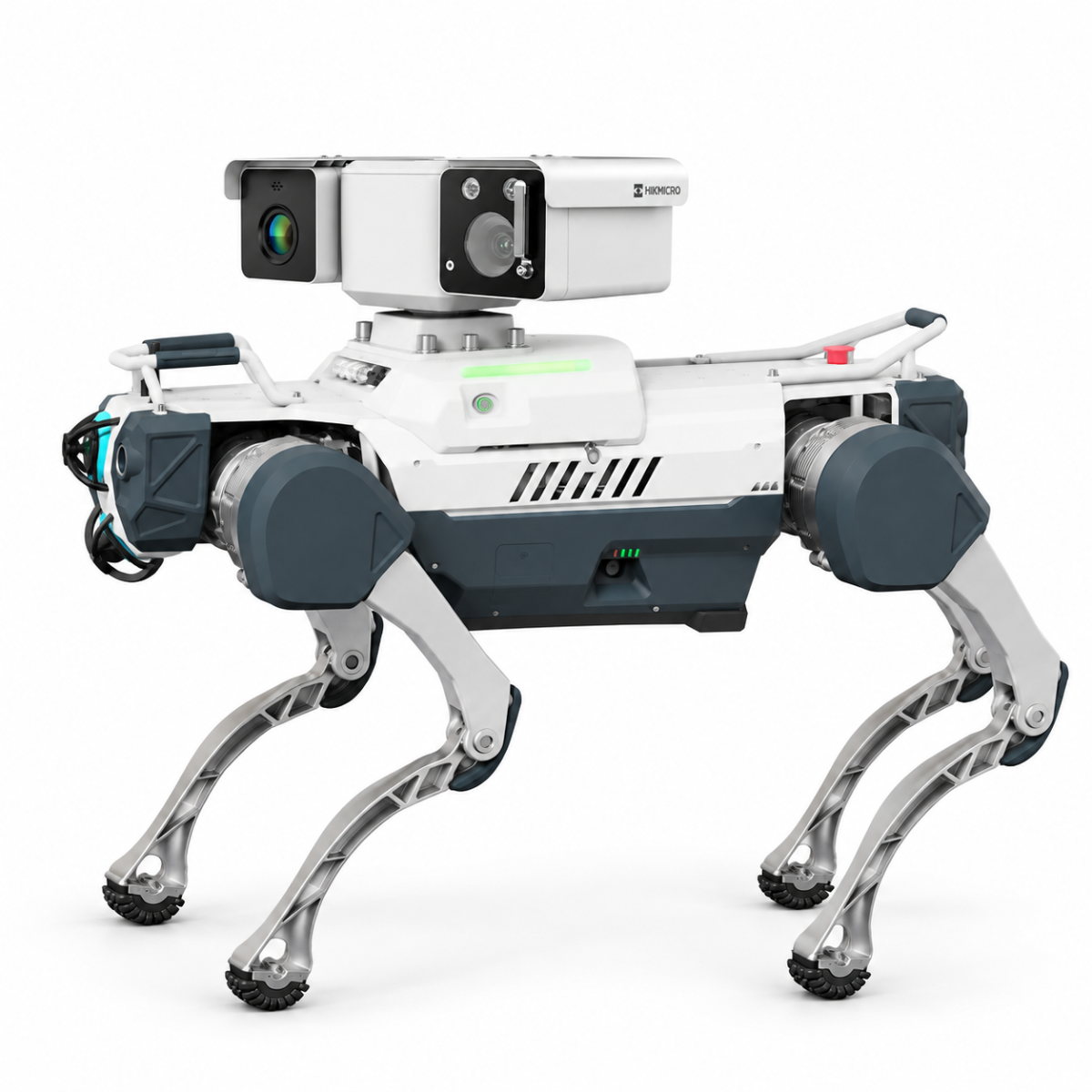

The HIKVISION HM-TD5567T-25/W is a metal-housed pan-tilt-zoom camera that pairs an uncooled thermal imager with a 32× optical zoom visible-light camera, fitted here as an inspection payload for the Deep Robotics X30 quadruped. It is an accessory; the X30 itself is not included.

It is built for temperature patrols at substations, plants and other infrastructure. The thermal side, a 384 × 288 vanadium oxide sensor on a 15 mm lens, measures from -20 °C to 150 °C and from 0 °C to 550 °C to ±2 °C or ±2% of range, with line, area and point measurement rules, warning and alarm thresholds, and fire point detection. Full-screen temperature data and heat maps can be collected for your own software, and the State Grid B interface is supported.

The pan-tilt head turns 360° horizontally and from -90° to +90° vertically, and returns to any of 300 presets within ±0.1°, so the camera can frame the same equipment from the same stop on every round; 8 cruise tours of up to 256 presets each can be stored. The housing is rated IP67, works from -40 °C to 70 °C, carries a wiper and 30 m of white-light fill, and the camera takes power and control from the robot, with its image and controls on the X30's controller and in software.

Its HIKVISION sibling for the LYNX M20, the HM-TD5728T-7/W(B), uses a wide-angle 640 × 512 thermal sensor in a plastic housing for close work. This X30 model is the long-range choice: a narrower 24.55° × 18.54° thermal view detects a person at 441 m and a vehicle at 1353 m, and the 5-160 mm visible lens zooms in on gauges and fittings from a distance. It weighs 5 kg and measures 320 × 194 × 153 mm.

Key Capabilities

• Thermal and visible in one head: A 384 × 288 vanadium oxide thermal sensor sits beside a 2688 × 1520 visible-light camera on one pan-tilt head.
• 32× optical zoom: The 5-160 mm visible lens zooms 32× optically, with a further 16× digital zoom.
• Temperature measurement to 550 °C: Two ranges, -20 °C to 150 °C and 0 °C to 550 °C, measure to ±2 °C or ±2% of range with line, area and point rules.
• Alarms and fire point detection: Warning and alarm thresholds trigger when a temperature passes its limit, and fire point detection is built in.
• 300 repeatable presets: Presets return to within ±0.1°, and 8 cruise tours of up to 256 presets each can be stored.
• Built for outdoor patrols: The metal housing is rated IP67 and works from -40 °C to 70 °C, with a wiper and 30 m white-light fill.
• Integrated with the X30: The camera takes power and control from the robot, with its image and controls on the X30's controller and in software.
