- Putty sanding from 300 to 3,600 mm The sanding edition works skim-coated walls from 300 mm above the floor up to 3,600 mm.
- Up to 60 m² per hour DaFang gives a sanding rate of up to 60 m²/h at a removal depth of 0.1–0.5 mm.
- 800 W head, 60–320 mesh Sanding power is up to 800 W, and the head takes sandpaper from 60 to 320 mesh.
- L3 autonomous driving Laser radar and visual cameras let the robot detect obstacles and issue warnings as it moves.
- Cloud progress tracking Managers see each robot's location, status and work progress in the app and the web portal.
- 80 kg, suitcase-sized The 600 × 550 × 1,050 mm body is built for quick transport between floors and fast deployment.
Description

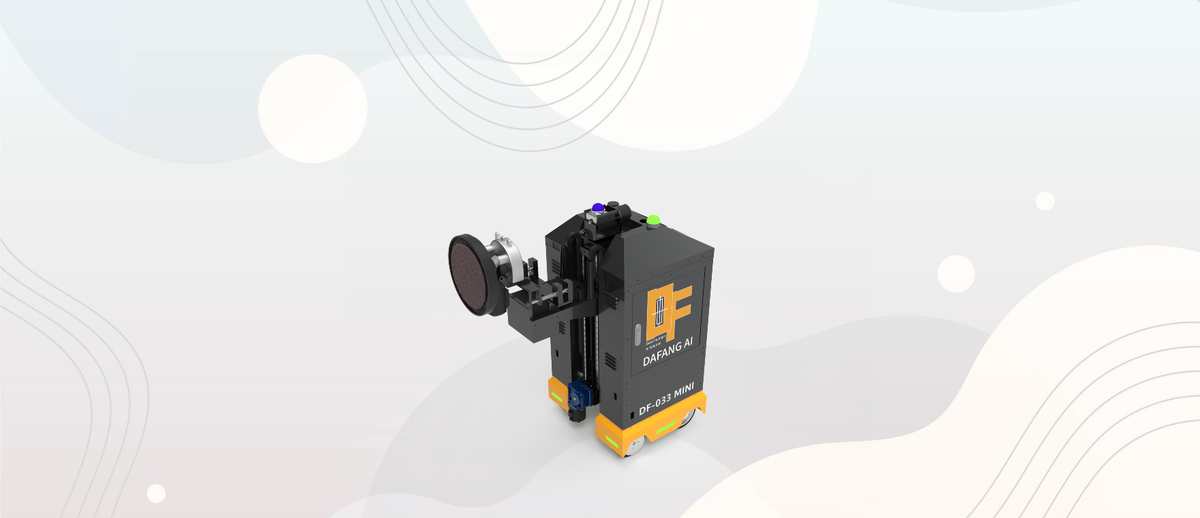

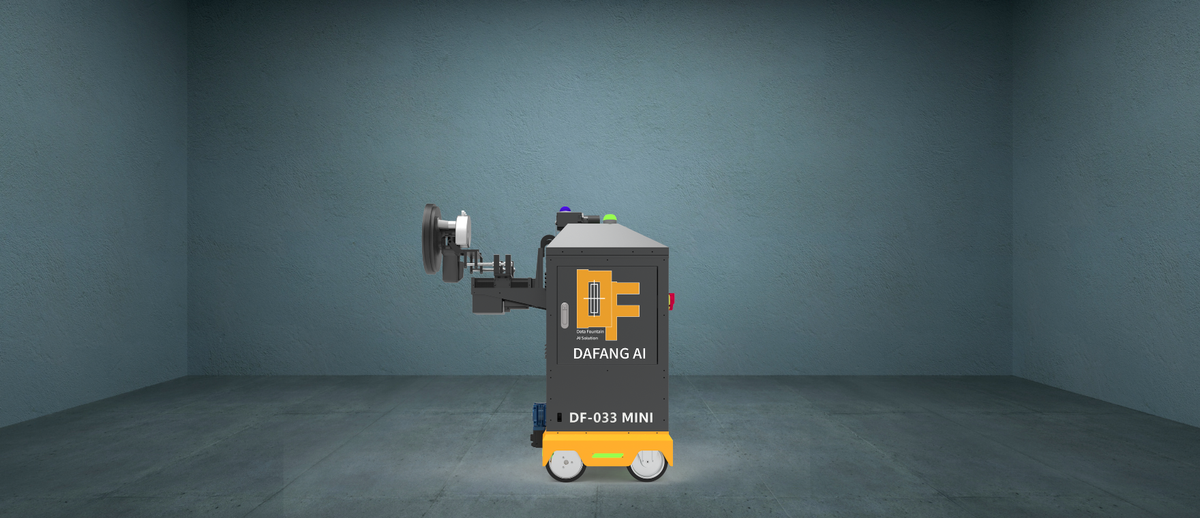

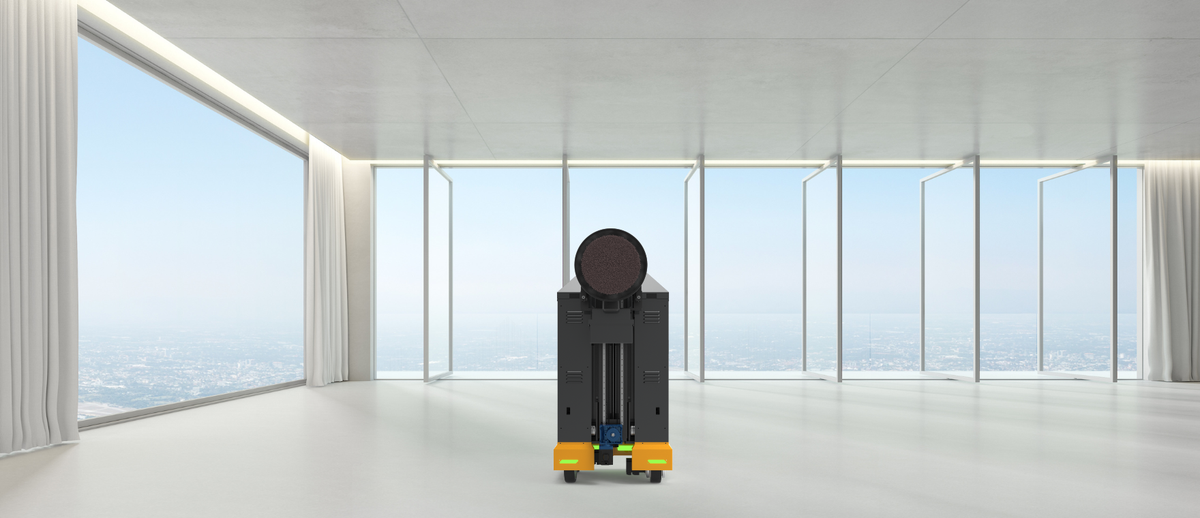

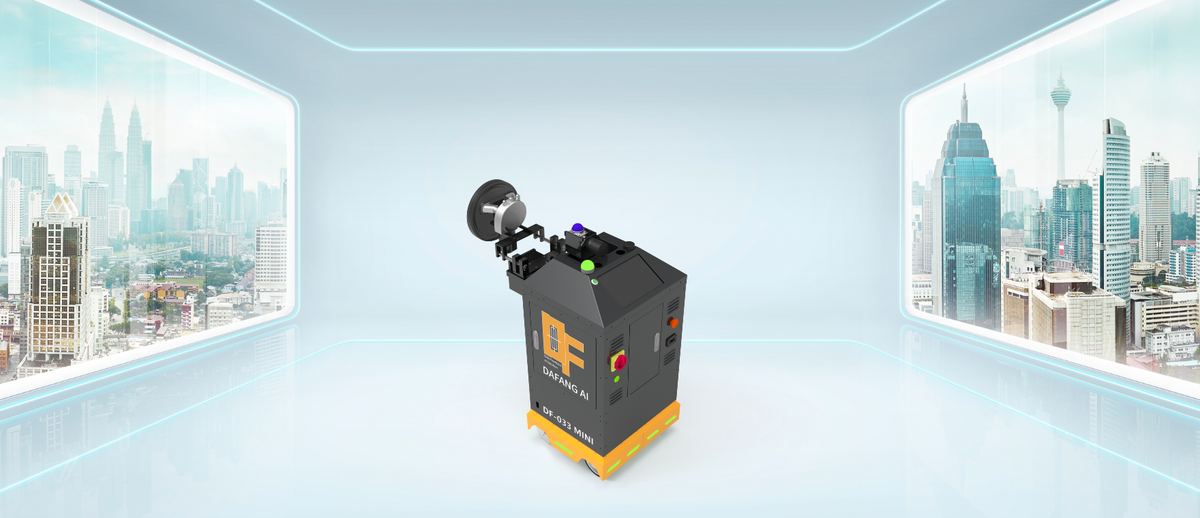

The DaFang DF033 MINI Wall Sanding Robot is the sanding edition of the DF033 MINI. Its job is the step between putty and paint: sanding skim-coated walls flat from 300 mm above the floor up to 3,600 mm, with a sanding head of up to 800 W that takes sandpaper from 60 to 320 mesh.
DaFang gives a sanding rate of up to 60 m² per hour at a removal depth of 0.1–0.5 mm. Putty sanding is repetitive, dusty work, and moving it to a machine cuts the time crews spend standing in sanding dust on commercial and industrial building projects.
The robot weighs 80 kg in a suitcase-sized body of 600 × 550 × 1,050 mm, built to be moved between floors and deployed quickly. DaFang's L3 autonomous driving uses laser radar and visual cameras to detect obstacles and issue warnings; the chassis moves at up to 400 mm/s, positions to within ±10 mm, climbs gradients of up to 25° and crosses gaps of up to 40 mm.
Site managers follow the work through DaFang's digital cloud services, where the app and the web portal show each robot's location, status and progress. Dust extraction, power supply, battery and the sanding consumables supplied are confirmed with the quotation; the painting and disinfecting editions of the DF033 MINI are listed separately.
Key Capabilities
- Putty wall sanding: Sands skim-coated walls from 300 mm to 3,600 mm above the floor.
- Up to 60 m²/h: DaFang's sanding rate at a removal depth of 0.1–0.5 mm.
- 800 W head, 60–320 mesh: Sanding power of up to 800 W with coarse to fine sandpaper.
- L3 autonomous driving: Laser radar and visual cameras detect obstacles and trigger warnings.
- Cloud progress tracking: Location, status and work progress are visible in the app and the portal.
This model is offered on a quotation basis. Configuration, accessories, integration scope and delivery schedule all change the final figure, so pricing is confirmed per project rather than listed.
Buying through Robotix Market
This unit is sourced new through established distribution channels and ships worldwide with the full manufacturer warranty. Technical support is coordinated with the manufacturer's own service network. Deployment scope, configuration, and commissioning responsibilities are agreed as part of the quotation — on-site installation is not included in the product price.
Features
Specs
| Brand | DaFang AI |
|---|---|
| Model | DF033 MINI, sanding edition |
| Product Type | Putty wall sanding robot |
| Function | Putty wall sanding |
| Sanding Height | 300–3,600 mm |
| Sanding Rate | ≤60 m²/h (0.1–0.5 mm depth) |
| Sanding Power | ≤800 W |
| Sandpaper | 60–320 mesh |
| Robot Weight | ≤80 kg (176.37 lb) |
| Robot Size | 600 × 550 × 1,050 mm (23.6 × 21.7 × 41.3 in) |
| Climbing Gradient | ≤25° |
| Crossing Width | ≤40 mm |
| Movement Speed | ≤400 mm/s |
| Positioning Accuracy | ±10 mm |
| Navigation | L3 autonomous driving: laser radar and visual cameras, obstacle detection and warnings |
| Monitoring | Digital cloud services: app and web portal (location, status, work progress) |
| Dust Extraction | Confirm at quote |
| Power Supply and Battery | Confirm at quote |
| Sanding Consumables Supplied | Confirm at quote |
Industries
Frequently Asked Questions
It sands putty-skimmed walls before painting, from 300 mm above the floor up to 3,600 mm. It is the sanding edition of DaFang AI's compact 80 kg DF033 MINI.
DaFang gives a sanding rate of up to 60 m² per hour at a removal depth of 0.1–0.5 mm.
The head takes sandpaper from 60 to 320 mesh, and sanding power is up to 800 W.
Yes. DaFang's digital cloud services show each robot's location, status and work progress in the app and on the web portal.
Dust handling is confirmed with the quotation. Tell us whether your site needs extraction on the robot or already runs its own, and the configuration is set out in the quote.
It is offered by quotation — configuration, quantity and delivery are confirmed per project.
