- Dedicated obstacle avoidance coverage Optimized for real-time obstacle detection rather than SLAM navigation, providing a 270° scan zone focused on collision prevention in robot operating areas.
- Ultra-compact 130 g form factor 50 × 50 × 77 mm body weighing ~130 g enables installation on AMRs and AGVs with strict space and payload constraints without requiring structural modifications.
- 25-meter detection range Detects objects from 0.05 m to 25 m with ±3 cm absolute accuracy, providing early warning of pedestrians and obstacles at safe stopping distances.
- ≤3 W power consumption Extremely low power draw reduces thermal and electrical load on mobile platforms, supporting longer runtimes and simplified power management.
- M12 connector for fleet maintainability Standardized M12 circular connector allows tool-free sensor replacement, reducing downtime in multi-robot fleet operations.
- IP65 rated, −10°C to 50°C operating range Dust-tight, water-jet-resistant enclosure and wide operating temperature range ensure reliable performance in demanding indoor industrial environments.
الوصف

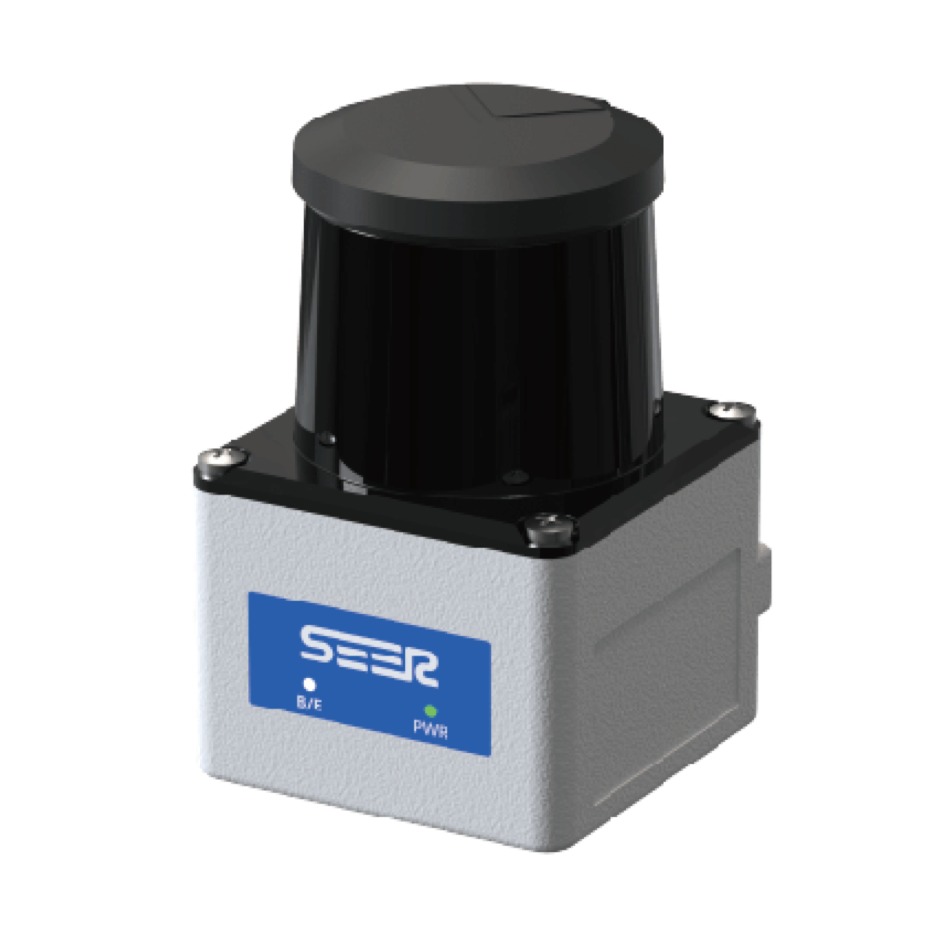

The SEER Robotics C214 is a lightweight 2D obstacle avoidance LiDAR sensor designed to protect autonomous mobile robots and AGVs from collisions in dynamic industrial environments. Measuring just 50 × 50 × 77 mm and weighing approximately 130 g, the C214 is one of the most compact LiDAR sensors in the SEER Robotics peripheral ecosystem, making it well suited to mobile platforms where size, weight, and power budgets are constrained. A 270° scanning angle and measurement range of 0.05 m to 25 m provide broad lateral and forward coverage for detecting pedestrians, obstacles, and unexpected objects in the robot's operating zone.
Absolute accuracy of ±3 cm at a 15 Hz scanning frequency delivers consistent detection performance at a power consumption of just ≤3 W, minimizing thermal load on the host platform. The M12 circular connector design enables tool-free interchangeability for simplified maintenance in fleet deployments, and an IP65 ingress protection rating ensures reliable operation in dusty or damp industrial settings. The C214 integrates with SEER Robotics' broader AMR and AGV ecosystem, complementing navigation LiDAR sensors by providing dedicated obstacle avoidance coverage without adding significant payload or power overhead to the platform.
الميزات
المواصفات
| Brand | SEER Robotics |
|---|---|
| Model | C214 |
| Product Name | 2D Obstacle Avoidance Lidar |
| Dimensions (L×W×H) | 50 × 50 × 77 mm |
| Weight | ~130 g |
| Wavelength | 905 nm |
| Laser Safety Level | Class I |
| Laser Channels | 1 |
| Scanning Angle | 270° |
| Scanning Frequency | 15 Hz |
| Angular Resolution | 0.33° |
| Measurement Range | 0.05 m to 25 m |
| Absolute / Repeat Accuracy | ±3 cm |
| Power Consumption | ≤3 W |
| IP Rating | IP65 |
| Working Temperature | −10°C to 50°C |
الصناعات
الأسئلة الشائعة
The C214 is a compact 2D obstacle avoidance LiDAR sensor used on autonomous mobile robots and AGVs to detect pedestrians and unexpected objects in the robot's path, providing real-time collision protection in factories, warehouses, and logistics centers.
It delivers 270° obstacle detection from 0.05 m to 25 m with ±3 cm accuracy at just ≤3 W power consumption, in a 130 g package designed for tight integration on mobile platforms with constrained weight and power budgets.
It is used in industrial, warehouse, and logistics automation where AMRs and AGVs operate in shared spaces with pedestrians and where a dedicated, lightweight obstacle avoidance sensor is needed without adding significant payload or power overhead.
Yes, Robotix Market ships the SEER Robotics C214 worldwide. The product is covered by the manufacturer's warranty as provided by SEER Robotics.
Pricing is quotation-based. Submit an inquiry through the Robotix Market website and our team will provide pricing, lead time, and compatibility details for your AMR or AGV platform.
